PT1850 Wheel Adapters

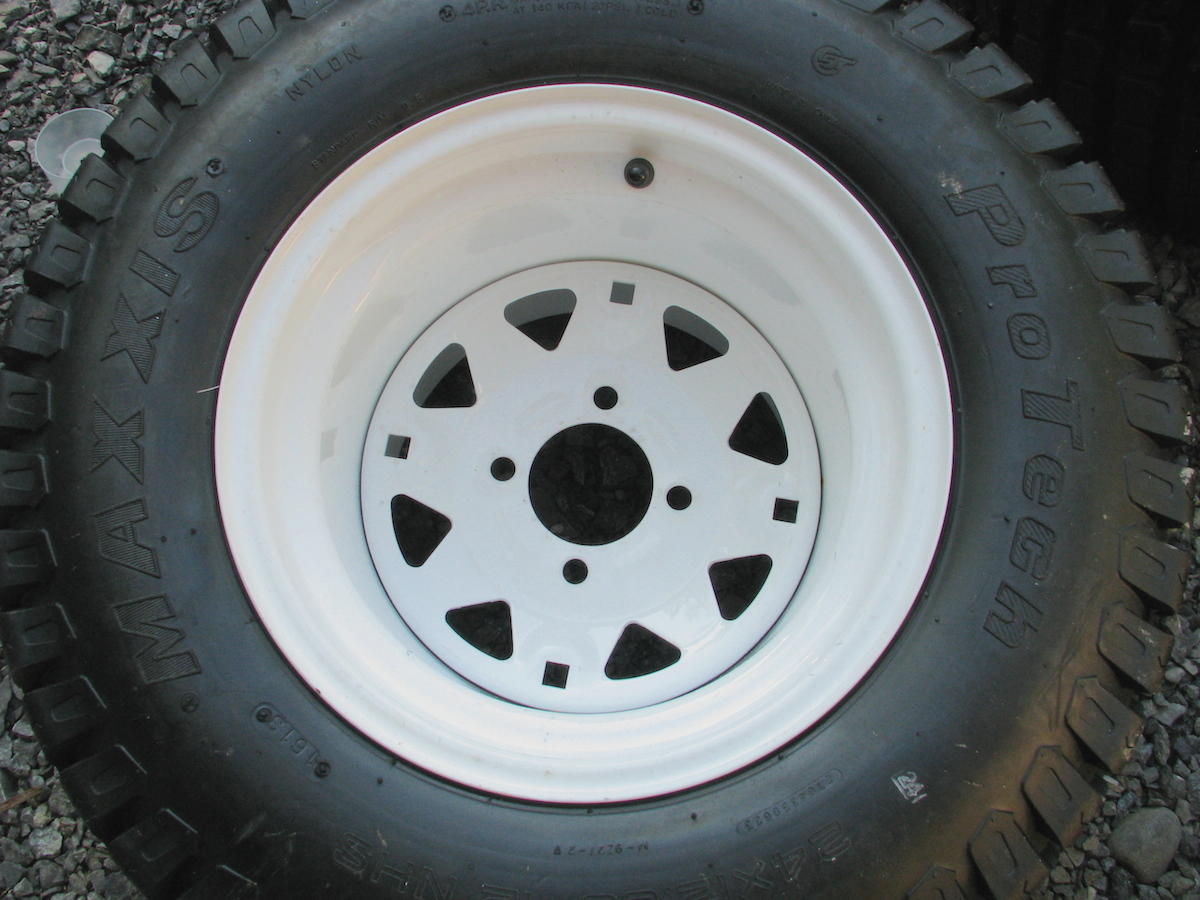

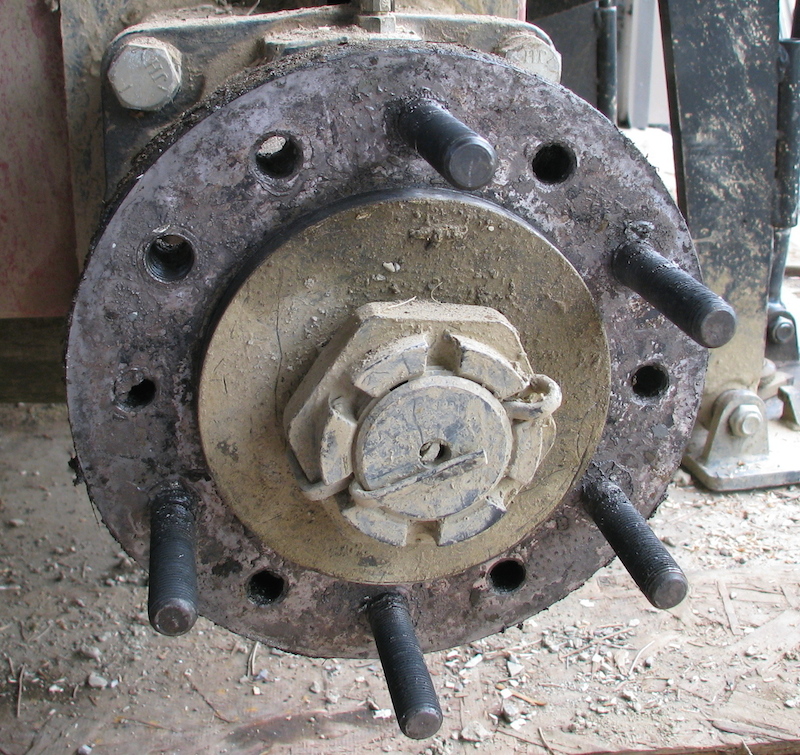

JJ was kind enough to let us know about a good deal on some turf 24 x 12-12 Tires and Rims. I purchased them for the tires only but then I realized I have always wanted more clearance for tractor chains so I decided to use the rims as well. I did not want to have to take the tires off and then remount them so I went with a bolt on solution instead of a weld on solution. Here are pictures of the new tires which are pretty nice 4-ply turfs. Also shown is a picture of the wheel motor hub (one stud is removed):
|

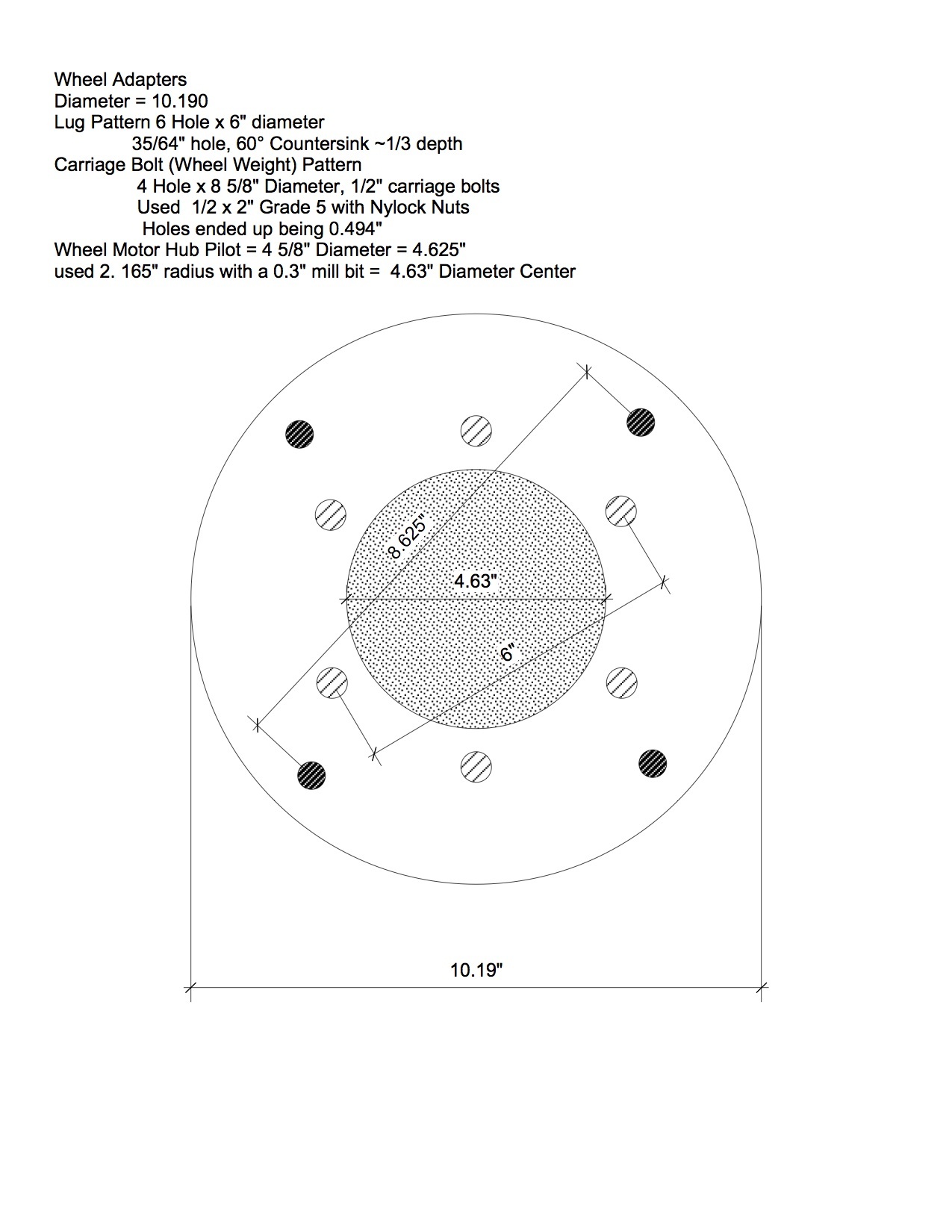

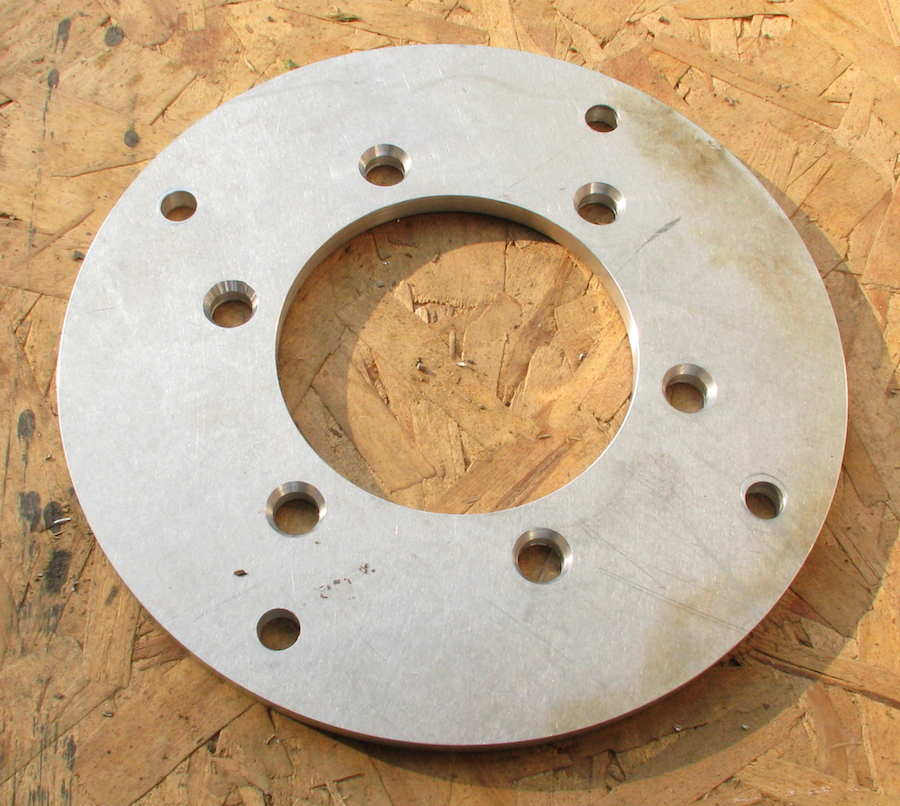

Here is a CAD drawing I did after I built the project as well as a finished wheel adapter:
|

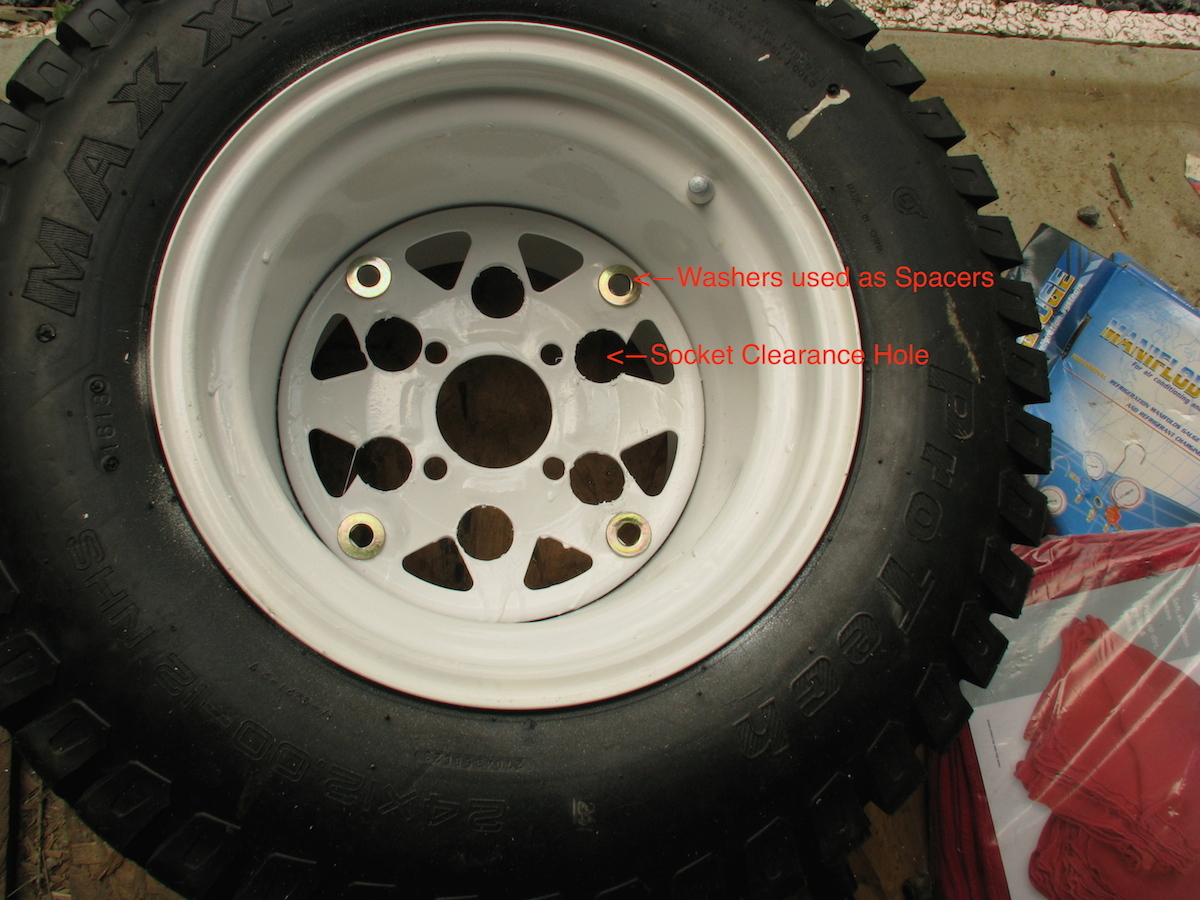

Here is the new rim with socket clearance holes drilled since the adapter plate will be "inside" of the wheel:
|

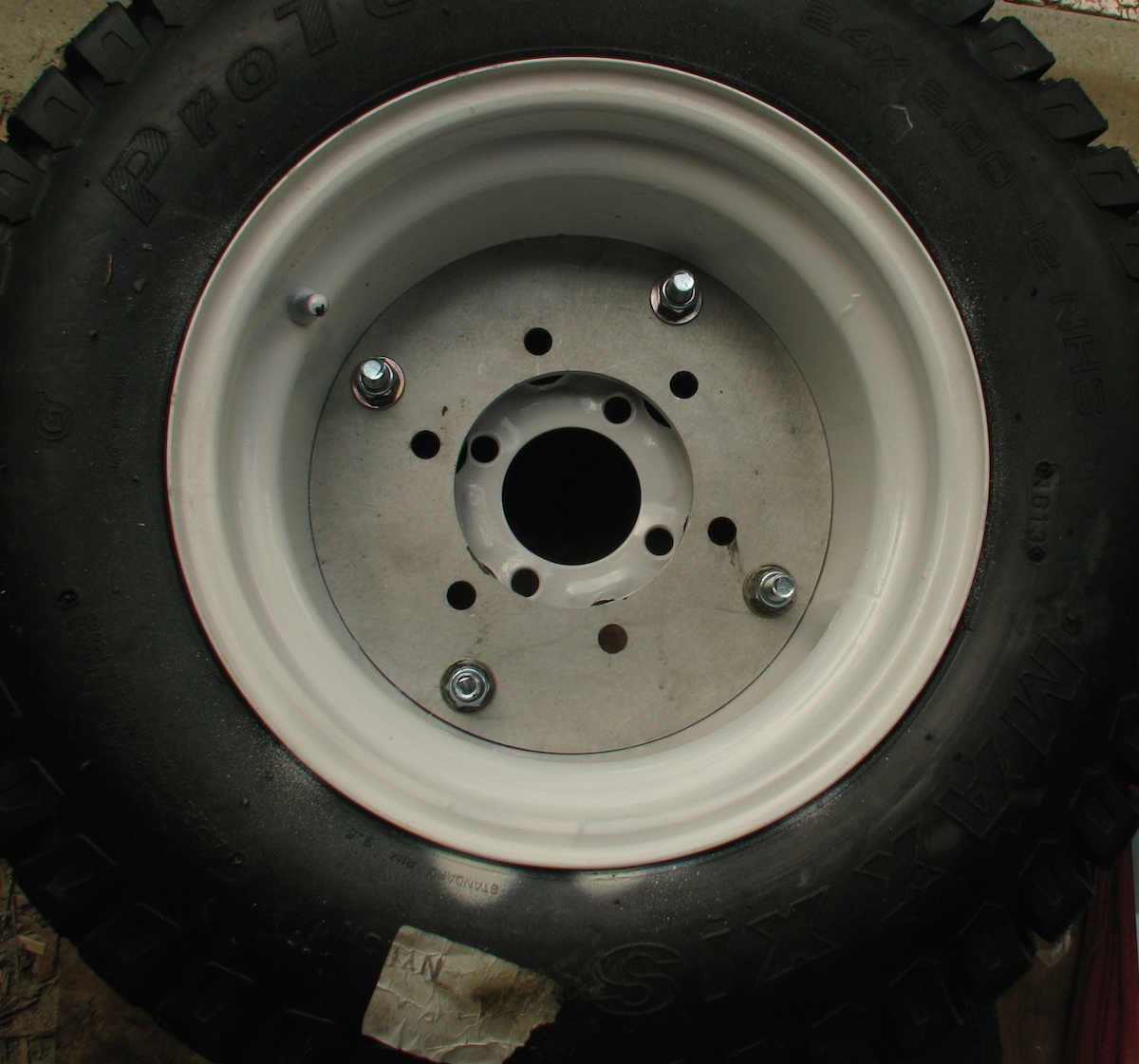

This picture shows the plate attached with carriage bolts utilizing the square wheel weight holes in tyhe new rim:

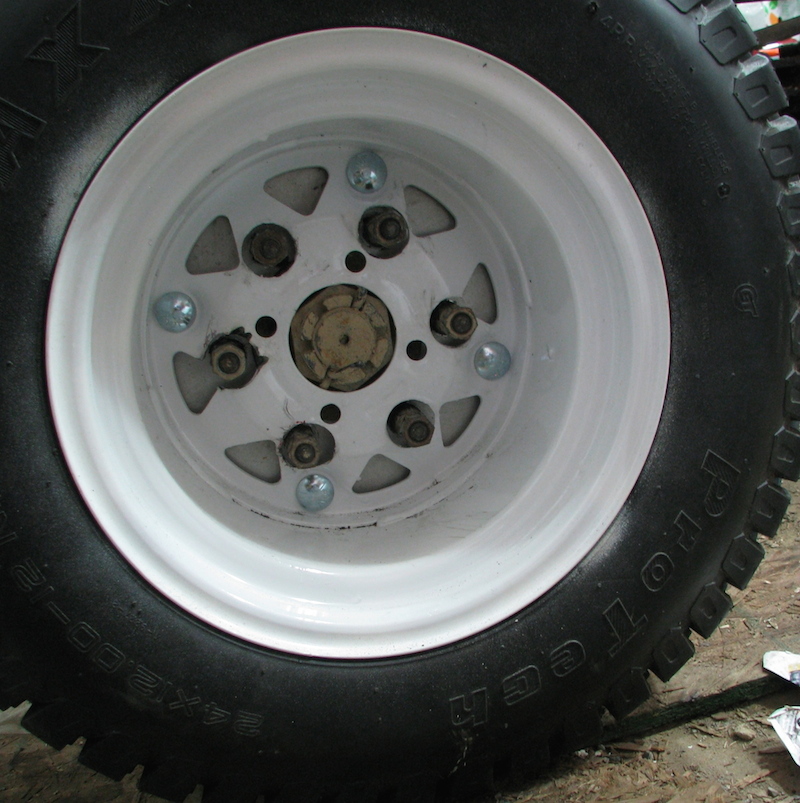

Here is the wheel installed:
|

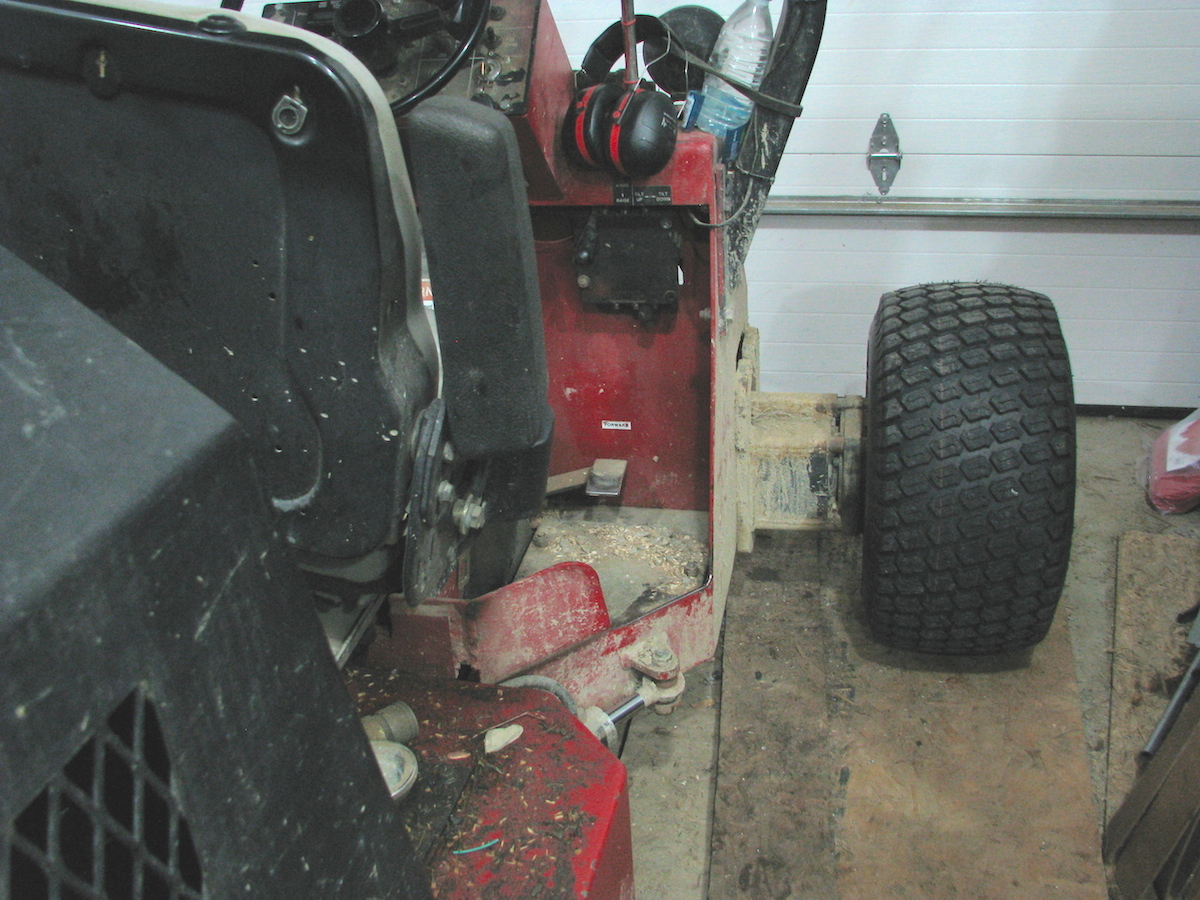

And here you can see the added clearance (8" instead of ~1"):
|
|
|
